V 1504 Vertical Platform Lift

V 1504 Vertical Platform Lift

Savaria offers the V-1504 vertical wheel chair platform lift, the most versatile lift on the market.
The unique drive and platform combinations of the V-1504 vertical wheel chair platform lift allows for rapid delivery and ease of installation in respect to any architectural requirements.

Standard Equipment

  • 750 lb (340 kg) capacity
  • Maximum travel of 23' (7,000 mm)*
  • Travel speed: 25 feet/min (0.13 m/s) approx.
  • 34” x 54” (864 x 1,372 mm) minimum platform dimensions
  • 115 VAC operation (115 VAC up direction and 2 VDC battery down)
  • Emergency battery lowering
  • Remote location emergency manual lowering valve
  • 2.1 chain hydraulic drive system
  • Gear type hydraulic pump
  • 8 foot long modular guide rail assembly
  • Roller guide shoes
  • 1.5 hp (1.119kW) output
  • Electronic free relay logic controller
  • Automatic battery recharging system (115 VAC)
  • Combination mechanical lock and electric contacts or electric strike*
  • Low voltage controls
  • Normal limit switch
  • Control buttons on platform*
  • Keyed call station
  • Continuous pressure directional buttons
  • 42” (1,067 mm) high side guard panels
  • Non-skid platform surface
  • Beige acrylic urethane paint on all steel surfaces
  • No machine room required

V1504 - STD

V1504 - STD

The standard model is built around a powerful hydraulic system which can raise a platform and the users throughout various architectural boundaries. It is designed to fit indoor hoistway applications and also for outdoor use.

V1504 - TL

V1504 - TL

The tall enclosure model is designed to provide an enclosure with metal inserts from the bottom landing door to the top landing gate. It is a good alternative to a three gate system because of its simplicity and ease of operation

V1504 - PE & ALPE

V1504 - PE & ALPE

The plexiglass enclosure model is designed to provide an aesthetic enclosure with plexiglass inserts. It is available with various travels and is offered with top landing gate for semi-enclosed hoistway or with top landing door, enclosure extension and plexiglass dome for both indoor and outdoor applications. The ALPE model is made of an aluminum enclosure and a yellow zinc treatment on steel parts to withstand the outdoor environment.

V1504 - LUX

V1504 - LUX

The luxury model has been created to meet those very personalized architectural needs. It is a rich blend of tempered glass, stainless steel or brass materials. It is designed with a bottom landing door and top landing gate or door.

V1504 - MOB

V1504 - MOB

The mobile model is a lift that can be rolled inside a building to any low rise barrier in order to become wheelchair accessible. It easily stores out of sight when not in use.

V1504 - Prestige

V1504 - Prestige

The prestige model is a lift designed to meet those very personalized architectural needs. It is constructed with high quality glass and brass materials, and will blend in with any high quality/look environment.

Optional Equipment

  • Special platform dimensions up to 18 ft 2 (1.67 m 2 )*
  • Enter/exit same side
  • 90º exit
  • Intermediate stops
  • Platform gate
  • Top landing gate
  • 115 VAC operation (115 VAC up direction and 12 VDC battery down)
  • Upper/lower landing door 80" (2,032 mm)
  • Flush mounted 80" (2,032 mm) door and frame, 1H1/2 ULC fire-rated
  • Portable unit package
  • Stair bridge
  • Flip up seat
  • Custom color
  • Public building package conforms to CSA-B355 and ASME A18.1*
  • Emergency light and alarm
  • Direct hydraulic drive system
  • Outdoor package including electro-deposited yellow zinc coating
  • Motorized door
    *Consult local codes and regulations

Unique Features

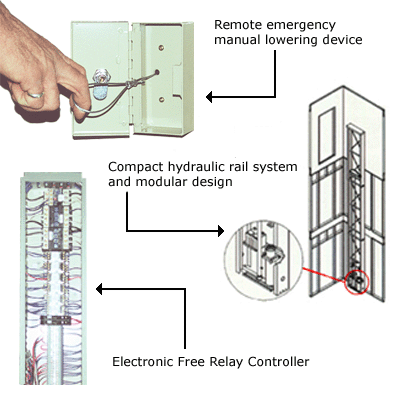

V1504 Unique Features



Specifications


Rated Load 750 lb (340 kg)
Rated Speed V1504 Models: PE - STD - TL
25 f.p.m.(nominal) (0.13 m/s)

V1504 Models: Lux - Prestige
25 f.p.m.(nominal) (0.13 m/s)
Up to 11'10" of travel
Usable Car Dimensions 34'' x 54'' (864 X 1,372 mm)
Levels Serviced 2,3,4
# of Openings 2
Car Access Enter/Exit same side, 90o exit, front/rear
Max. Travel 23 feet (7,000 mm)
Operations Constant Pressure
Power Supply 110 volt, 15 amp, 1 phase, 60 Hz
Drive System 2:1 Roller chain hydraulic
Emergency PowerBattery operation in down direction
Controller Electronic-free relay logic
Motor/Pump 110VAC, 1.5HP
Manual Lowering V1504 Models: PE - STD - TL
Outside the hoistway at desired landing

V1504 Models: Lux - Prestige
On the side of the drive tower

Documents

Brochure - V1504-STD
Brochure - V1504-ALPE
Brochure - V1504-LUX
User Manual
Specifications - V1504-STD
Specifications - V1504-PE
Specifications - V1504-TL
Specifications - V1504-LUX
Specifications - V1504-Prestige
CAD Drawings - V1504-STD
CAD Drawings - V1504-STD Plan View
CAD Drawings - V1504-PE
CAD Drawings - V1504-PE Plan View
CAD Drawings - V1504-TL
CAD Drawings - V1504-TL Plan View
CAD Drawings - V1504-LUX
CAD Drawings - V1504-LUX Plan View
CAD Drawings - V1504-Prestige
CAD Drawings - V1504-Mobile
CAD Drawings - Doors and Gates
