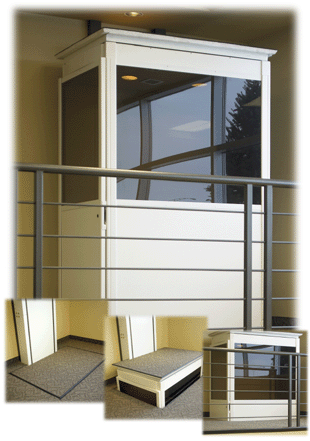

Savaria Concord Flordia offers the Telecab, a residential two-stop elevator. The Telecab maximizes living space and keeps construction to a minimum by eliminating the need for a hoistway. The Telecab's modern design harmonizes with any environment. It is an economical, attractive and dependable solution, allowing mobility-impaired people to move from one floor to another.
Standard Equipment
- 500 lbs (227 kg) capacity
- Maximum travel of 16'(4,877mm)
- Travel speed 25 feet/min (0,07m/s) approx.
- Cab dimensions: 30" x 46" x 78" (762 x 1,168 x 1,981 mm)
- 115 VAC relay logic operation(115 VAC up direction and 12 VDC down)
- Automatic battery recharging system (115 VAC)
- Low voltage controls
- 2:1 chain hydraulic drive system
- Roller guide shoes
- Keyed call / send stations
- Continuous pressure directional push buttons
- Non-skid platform surface
- Beige or white acrylic urethane paint finish
- ¼" (6 mm) plexiglass windows
- Front only car access
- 34" x 59" (864 x 1,499 mm) minimum floor cutout
- 90" (2,286 mm) minimum overhead at top landing
- Three piece modular cab design and 8 ft modular guide rail for easy access on site
- Time delay for automatic door lock system
- Comforms to ASME A17.1
|
|
Safety Features

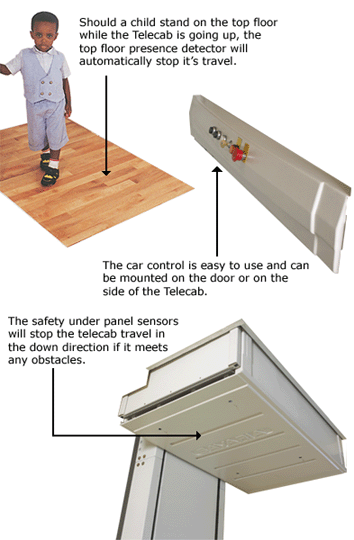

- Adjustable top floor presence detector built in to the cab
- Electro-mechanical door lock and open door sensor
- Under panel safety sensor
- Emergency stop and alarm
- Emergency battery lowering
- Emergency lowering
- Fully enclosed drive tower for safety and aesthetics
- Pressure relief valve to prevent platform overload
- Telephone in cab
- Halogen light in cab
- Slack chain safety device
|
Optional Equipment
- Battery operation in up and down direction
- Electro-mechanical door lock and open door sensor
- Under panel safety sensor
- 32" x 54" (813 x 1,372 mm) cab dimension
- Front/back access
- Two door concept
- Custom cab dimension
- Custom color
- Door closer
- Remote hand control
- Door mount or side mount car control station
- In-cabin automatic door opener
|
Unique Features
|
|
