With its smooth rack and pinion drive and battery power, “Step-Saver™” can effortlessly take you up and down a straight stairway, even during a power outage. Its neutral color and modern appearance can coordinate with practically any décor, and its slim rail and carriage save room on the steps to allow others access past the lift.

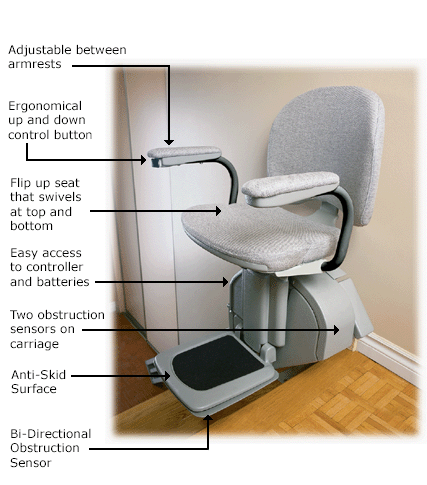

Standard Equipment
- Rack and pinion drive
- Rigid and compact aluminum extrusion rail
- Support posts anchored to stair treads (Not mounted on wall)
- 300 lb (136 kg) capacity
- "Almond beige" seat and rail
- Adjustable width between armrests from 18" to 21" wide (457 to 533mm)
- 1/2 hp, 24 VDC motor
- Battery-powered 24-volt motor
- Pair of 12-volt, maintenance-free batteries
- Charger plugged in at top or bottom landing 110 VAC, 60 Hz outlet
- Electronic controller with soft start and soft stop
- Fused control circuit
- Wireless infrared call-send controls at both landings
- Continuous pressure buttons
- Aluminum rail on 6" (152 mm) from wall
- 3" (76 mm) rail overhang at top landing with seat height of 18" (457mm)
- 22 1/2" (572 mm) seat height at bottom landing
- Adjustable seat height
- Unit is completely reversible on site for quick installation
- Lateral adjustment on footrest for uneven treads
- Foldable footrest, seat and padded armrests
- Seat that swivels and locks in 45° and 90° positions both directions
- Seatbelt and seat swivel switch
- ABS plastic covers
- Obstacle sensors under footrest and on carriage
|
|
Specifications |
| Application |
Indoor, outdoor, straight run stairway |
| Maximum Travel |
32 ft (9,754 mm) |
| Speed |
20 fpm (0,1 m/s) approx. |
| Angle of incline |
25º to 50º |
| Rated load |
300 lbs (136 kg) |
| Drive system |
Rack and pinion |
| Motor |
½ hp, 24 VDC. Charges on standard household power 120VAC, 60Hz outlet or 240VAC, 50Hz at top or bottom landing |
| Standard color |
Beige carriage and upholstery, grey or
beige rail finish |
|
