Savaria Concord Florida introduces the Multilift vertical wheel chair platform lift. The ACME screw drive system offers a safe and reliable operation for its users. This ruggedly constructed lift has been proven for both indoor and outdoor applications.
The Multilift vertical wheel chair platform lift is designed to meet today's safety code requirements like ASME A18.1 and CSA-B613 for residential use.
Standard Equipment
|
- ACME Screw Drive System
- Keyed Control Station On Car
- 1 hp (0.75 kw) motor, 110 VAC
- 750 lb (340 kg) capacity
- 42" (1067 mm) high platform guard panels
- 110 VAC operation (up and down)
- Approximate rate of speed 8 ft/min (0.04 m/s)
- Roller guide shoes
- Continuous pressure buttons on car
- Non-skid platform surface
- Manual emergency lowering/raising device
- Standard "Almond Beige" color
- Automatic Safety ramp on platform
- Platform safety underpan sensor
- Emergency stop on car
- Crating and handling
|

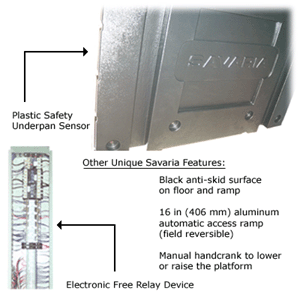

Unique Features
|
Specifications |
| Application |
Residential user Complies with ASME A18.1 and CSA-B613 |
| Rated Load |
750 lbs (340 kg) |
| Rated Speed |
8 feet per minute (0.04 m/s) |
| Usable Car Dimensions |
34”W x 54”L (864 x 1,372 mm) |
| Levels Serviced |
2 |
| # of Openings |
2 |
| Car Access |
Front/rear or 90 exit |
| Maximum Travel |
48” (1,219 mm) or 72” (1,827 mm) |
| Operations |
constant pressure |
| Drive System |
ACME screw and back-up nut |
Power Supply
(North America) |
120 VAC, 20 AMPS, 1 PHASE, 60 Hz |
| Controller |
Electronic-free relay logic |
| Side Guard Panels |
42” (1,067 mm) with metal inserts |
|
