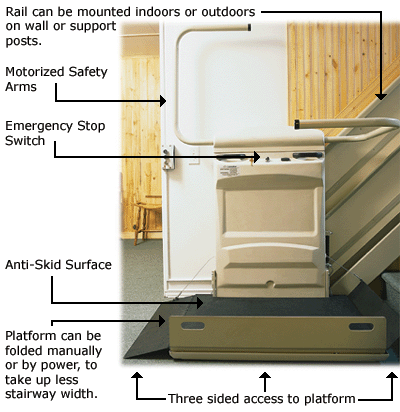

The ES-125 stair wheelchair lift is designed for both residential and commercial use. Its compact folding platform leaves the stairway virtually unobstructed when not in use. It can be used both indoors and outdoors.
Standard Equipment
- Aluminum extruded rail
- Continuous pressure buttons
- Mechanical access ramps
- One deflector sheave
- Cable driven unit
- Safety underpanel sensor
- 2 grab rails on car
- Keyed call/send controls on platform and at each landing
- Safety Brake
- Wall mounted call / send controls
- Obstruction sensors
- ABS plastic carriage covers
- Textured anti-slip surface on platform and ramps
- Car folds within 11" (279mm) of wall
|
|
Optional Equipment
- 3-position manual safety armrests
- Motorized 2 position safety armrests
- Fold-down seats with safety belt
- Powered fold platform
- Touch sensitive plate on the access ramps and under the platform to stop the lift if an obstruction is encountered
- 12 volt battery operation
- Hand-held pendant control on the platform
- Split rail
- Drive cabinet at top landing
- Audio visual alarm
- Motor with electro-mechanical brake
- Emergency stop switch
- Custom color
- Post for call/send station
- Outdoor package
- Zero clearance at top landing to avoid landing door
(Not available on Plus model)
- Fire service function
- Pre drilled guide rail for masonry walls
- Joined guide rail for ease of access on narrow sites
- Self-support posts
- Manual lowering device
- Three (3) sided access to platform with motorized lateral access ramp
- Flush cabinet at front or back of rail (Plus system)
- Self-support posts
|
Specifications |
Platform
Dimensions |
Type I: 27.50" x 36" (700 x 914 mm)
Type II: 28.50" x 44" (724 x 1,118mm)
Type III: 30" x 48" (762 x 1,219 mm)
Type IV: 30" x 44" (762 x 1,118 mm)
All platforms have non-skid surfaces. The platform can be folded manually or with the help of an optional power-fold platform. Once folded the unit uses very little space in order to leave the staircase virtually unobstructed. |
| Access ramps |
Two positive action automatic access ramps for straight or 90° entry |
| Motor assembly |
110 VAC, ½ hp (373 W), 1,750 rpm / gear reducer: 50:1 |
| Type of drive unit |
Standard system : Aircraft cable 3/16" (5 mm) with breaking load of 4,200 lbs (1,950 kg), deviator pulley and winding drum in a machine room.
Plus system: Roller chain #50 and aircraft cable with breaking load of 6,100 lbs (2,767 kg). The electric motor gear reducer and controller are self enclosed at the top landing in a drive cabinet. No machine room required. |
| Controller |
Meets CSA and ETL standards - 24 VAC operating controls |
| Power Supply |
110 VAC, 1Ph, 60Hz, 15 amp |
| Rated speed |
14.0 ft / min. (0.071 m / s)(approx.) |
| Capacity |
One person in a wheelchair |
| Rated load |
450 lbs (240 kg) |
| Operating controls* |
Continuous pressure directional buttons are installed on the platform with a key switch for increased safety. (*) |
| Call stations |
Continuous pressure directional buttons are installed at each landing. |
| Finish |
One coat of primer and two coats of beige acrylic urethane paint on all steel surfaces. |
| Safety features |
Automatic dual access ramps, mechanical emergency brake in case of drive system failure, slack cable switch, keyed continuous pressure controls and upper / lower limit switches are standard features on this unit. |
|
Documents
Brochure
User Manual
Specifications - ES-125
Specifications - ES-125 Plus
CAD Drawings - ES-125
CAD Drawings - ES-125 Plus
